0.100" (2.54mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles:2-20
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

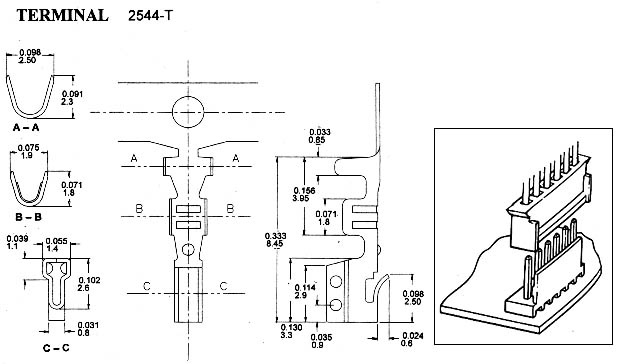

 TERMINAL:
  • Part No.: 2544-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

HOUSING:
  • Part No.:2544-H
  • Poles: 2-20
  • Material: Nylon 66, UL94V-2 Natural
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
WAFER:
  • Part No.:
    2544-WS(180    o),2544-WR(90o)
  • Poles: 2-20
  • Material:
    Post: Brass, Gold/Plated
    Base: Nylon, UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

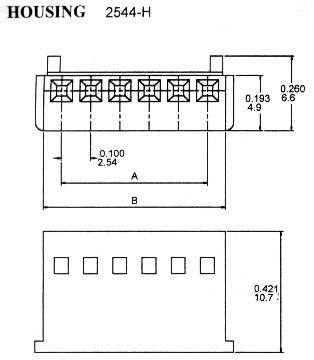

HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 2544-H-2 0.10(2.54) 0.249(6.33) Nylon 66

UL94V-2
3 2544-H-3 0.20(5.08) 0.349(8.87)
4 2544-H-4 0.30(7.62) 0.449(11.41)
5 2544-H-5 0.40(10.16) 0.549(13.95)
6 2544-H-6 0.50(12.70) 0.649(16.49)
7 2544-H-7 0.60(15.24) 0.749(19.03)
8 2544-H-8 0.70(17.78) 0.849(21.57)
9 2544-H-9 0.80(20.32) 0.949(24.11)
10 2544-H-10 0.90(22.86) 1.049(26.65)
11 2544-H-11 1.00(25.40) 1.149(29.19)
12 2544-H-12 1.10(27.94) 1.249(31.73)
13 2544-H-13 1.20(30.48) 1.349(34.27)
14 2544-H-14 1.30(33.02) 1.449(36.81)
15 2544-H-15 1.40(35.56) 1.549(39.35)
16 2544-H-16 1.50(38.10) 1.649(41.89)
17 2544-H-17 1.60(46.64) 1.749(44.43)
18 2544-H-18 1.70(43.18) 1.849(46.97)
19 2544-H-19 1.80(45.72) 1.949(49.51)
20 2544-H-20 1.90(48.26) 2.049(52.05)

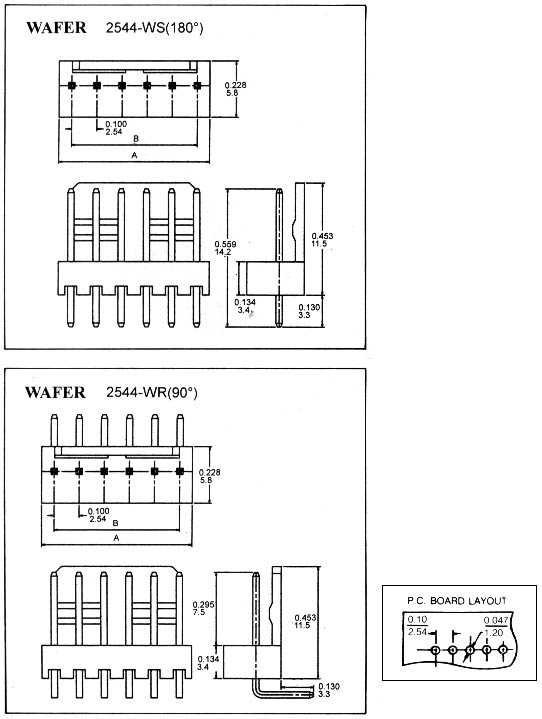

WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 2544-WS-2 2544-WR-2 0.20(5.08) 0.10(2.54)
3 2544-WS-3 2544-WR-3 0.30(7.62) 0.20(5.08)
4 2544-WS-4 2544-WR-4 0.40(10.16) 0.30(7.62)
5 2544-WS-5 2544-WR-5 0.50(12.70) 0.40(10.16)
6 2544-WS-6 2544-WR-6 0.60(15.24) 0.50(12.70)
7 2544-WS-7 2544-WR-7 0.70(17.78) 0.60(15.24)
8 2544-WS-8 2544-WR-8 0.80(20.32) 0.70(17.78)
9 2544-WS-9 2544-WR-9 0.90(22.86) 0.80(20.32)
10 2544-WS-10 2544-WR-10 1.00(25.40) 0.90(22.86)
11 2544-WS-11 2544-WR-11 1.10(27.94) 1.00(25.40)
12 2544-WS-12 2544-WR-12 1.20(30.48) 1.10(27.94)
13 2544-WS-13 2544-WR-13 1.30(30.48) 1.20(30.48)
14 2544-WS-14 2544-WR-14 1.40(35.56) 1.30(33.02)
15 2544-WS-15 2544-WR-15 1.50(38.10) 1.40(35.56)
16 2544-WS-16 2544-WR-16 1.60(40.64) 1.50(38.10)
17 2544-WS-17 2544-WR-17 1.70(43.18) 1.60(40.64)
18 2544-WS-18 2544-WR-18 1.80(45.72) 1.70(43.18)
19 2544-WS-19 2544-WR-19 1.90(48.26) 1.80(45.72)
20 2544-WS-20 2544-WR-20 2.00(50.80) 1.90(48.26)
