0.079" (2.0mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles: 6-64
    Voltage rating: AC 250V DC
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.
 WAFER:

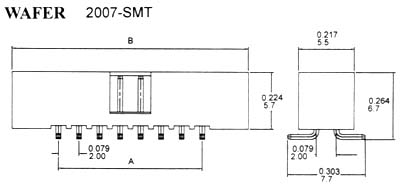

  • Part No.:2007-SMT
  • Poles:6-64
  • Material:
    Post:Phos. Brass, Gold Plated/Tin Plated
    Base: Nylon 66, UL94V-0
  • Q'ty: 250,500 pcs/roll
  • Dimension

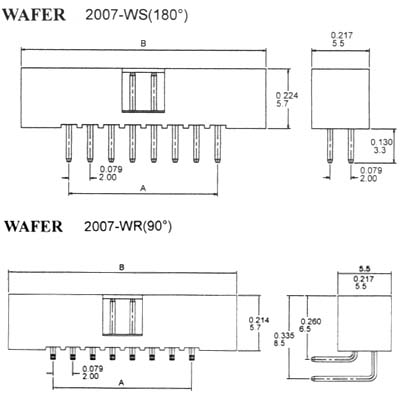

  • Part No.:2007-WS(180o),2007-WR(90o)
  • Poles:6-64
  • Material:
    Post:Phos. Brass, Gold Plated/Tin Plated
    Base: Nylon 66, UL94V-0
  • Q'ty: 250,500  pcs/roll
  • Dimension
WAFER:
Poles Part No.

Dimensions in. (mm)

Material
A B
6 2007-SMT-2x3 0.175(4.0) 0.516(13.1) Post: Brass
Gold Plated
 Tin/Plated


Base:Nylon 66
UL94V-0 Natural

　

8 2007-SMT-2x4 0.236(6.0) 0.594(15.1)
12 2007-SMT-2x5 0.394(10.0) 0.752(19.1)
14 2007-SMT-2x7 0.472(12.0) 0.881(21.1)
16 2007-SMT-2x8 0.551(14.0) 0.909(23.1)
20 2007-SMT-2x10 0.709(18.0) 1.067(27.1)
24 2007-SMT-2x12 0.866(22.0) 1.224(31.1)
26 2007-SMT-2x13 0.945(24.0) 1.303(33.1)
30 2007-SMT-2x15 1.102(28.0) 1.461(37.1)
34 2007-SMT-2x17 1.260(32.0) 1.618(41.7)
40 2007-SMT-2x20 1.496(38.0) 1.854(47.1)
44 2007-SMT-2x22 1.654(42.0) 2.012(51.1)
50 2007-SMT-2x25 1.890(48.0) 2.248(57.1)
56 2007-SMT-2x28 2.216(54.0) 2.484(63.1)
60 2007-SMT-2x30 2.283(58.0) 2.642(67.1)
62 2007-SMT-2x31 2.362(60.0) 2.720(69.1)
64 2007-SMT-2x32 2.441(62.0) 2.799(71.1)
WAFER:
Poles Part No.

Dimensions in. (mm)

Material
A B
6 2007-WS-2x3 0.157(4.0) 0.516(13.1) Post: Brass
Gold Plated
 Tin/Plated

Base:Nylon 66
UL94V-0 Natural

　

8 2007-WS-2x4 0.236(6.0) 0.594(15.1)
12 2007-WS-2x5 0.394(10.0) 0.752(19.1)
14 2007-WS-2x7 0.472(12.0) 0.881(21.1)
16 2007-WS-2x8 0.551(14.0) 0.909(23.1)
20 2007-WS-2x10 0.709(18.0) 1.067(27.1)
24 2007-WS-2x12 0.866(22.0) 1.224(31.1)
26 2007-WS-2x13 0.945(24.0) 1.303(33.1)
30 2007-WS-2x15 1.102(28.0) 1.461(37.1)
34 2007-WS-2x17 1.260(32.0) 1.618(41.1)
40 2007-WS-2x20 1.496(38.0) 1.854(47.1)
44 2007-WS-2x22 1.654(42.0) 2.012(51.1)
50 2007-WS-2x25 1.890(48.0) 2.248(57.1)
56 2007-WS-2x28 2.126(54.0) 2.484(63.1)
60 2007-WS-2x30 2.283(58.0) 2.642(67.1)
62 2007-WS-2x31 2.362(60.0) 2.720(69.1)
64 2007-WS-2x32 2.441(62.0) 2.799(71.1)
