0.079" (2.0mm) Pitch Disconnectable Connectors

SPECIFICATIONS:
  • Poles: 2-15
    Voltage rating: AC 250V DC
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

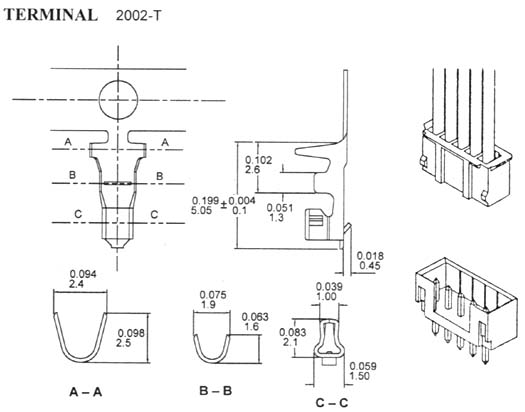

 TERMINAL:
  • Part No.:2002-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated 40µ" min.
  • Material: Phos. Bronze(Brass)
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty: 10,000 pcs/roll
  • Dimension

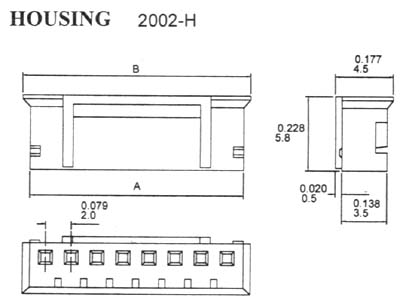

 HOUSING:
  • Part No.:2002-H
  • Poles:2-15
  • Material: Nylon 66, UL94V-0
  • Q'ty: 1000 pcs/roll
  • Color:Brown
  • Dimension

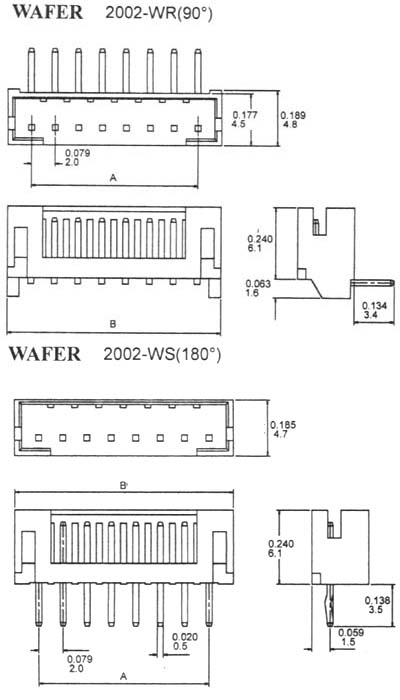

WAFER:
  • Part No.:
    2002-WS (180    o), 2002-WR(90o)
  • Poles:2-15
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon 66, UL94V-0
  • Q'ty:1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions in. (mm)

Material
A B

2

2002-H-2

 0.177(4.5) 0.220(5.6)

Nylon 66
UL94V-0

3

 2002-H-3 0.256(6.5) 0.299(7.6)

4

 2002-H-4 0.335(8.5) 0.378(9.6)

5

 2002-H-5 0.413(105) 0.457(11.6)

6

 2002-H-6 0.492(12.5) 0.535(13.6)

7

 2002-H-7 0.571(14.5) 0.614(15.6)

8

 2002-H-8 0.650(16.5) 0.693(17.6)

9

 2002-H-9 0.728(18.5) 0.722(19.6)

10

 2002-H-10 0.807(20.5) 0.850(21.6)

11

 2002-H-11 0.886(22.5) 0.929(23.6)

12

 2002-H-12 0.965(24.5) 1.008(25.6)

13

 2002-H-13 1.043(26.5) 1.087(27.6)

14

 2002-H-14 1.122(28.5) 1.165(29.6)

15

 2002-H-15 1.201(30.5) 1.244(31.6)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 2002-WS-2 2002-WR-2

0.079(2.0)

 0.236(6.0)
3 2002-WS-3 2002-WR-3

0.157(4.0)

 0.315(8.0)
4 2002-WS-4 2002-WR-4

0.236(6.0)

 0.394(10.0)
5 2002-WS-5 2002-WR-5

0.315(8.0)

 0.472(12.0)
6 2002-WS-6 2002-WR-6

0.394(10.0)

 0.551(14.0)
7 2002-WS-7 2002-WR-7

0.472(12.0)

 0.630(16.0)
8 2002-WS-8 2002-WR-8

0.551(14.0)

 0.709(18.0)
9 2002-WS-9 2002-WR-9

0.630(16.0)

 0.787(20.0)
10 2002-WS-10 2002-WR-10

0.709(18.0)

 0.886(22.0)
11 2002-WS-11 2002-WR-11

0.787(20.0)

 0.945(24.0)
12 2002-WS-12 2002-WR-12

0.866(22.0)

 1.024(26.0)
13 2002-WS-13 2002-WR-13

0.945(24.0)

 1.102(28.0)
14 2002-WS-14 2002-WR-14

1.024(26.0)

 1.181(30.0)
15 2002-WS-15 2002-WR-15

1.102(28.0)

 1.260(32.0)
