SPECIFICATIONS:
- Voltage rating: AC 200V
DC
- Current ration: AC, DC,
2A
- Withstand voltage: AC
100V/min
- Insulation resistance: 1000M
 min
- Temperature range:
-25oC
~ +85oC

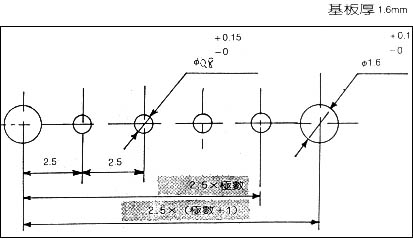

- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
Testing/ 20M max.
- Material: Nylon 66,
UL94V-0
- Color: White
- Applicable Wire: AWG#24-26
|

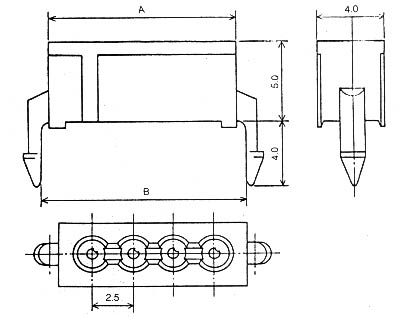

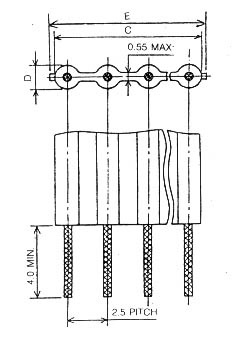

| Poles |
Part No. |
Dimensions
In. (mm) |
| A |
B |
C |
D |
E |
| 2 |
ERS-A02 |
6.5 |
7.5 |
4.0 |
 1.38
-1.5
AWG#
24-26 |
|
| 3 |
ERS-A03 |
9.0 |
10.0 |
6.5 |
| 4 |
ERS-A04 |
11.5 |
12.5 |
9.0 |
| 5 |
ERS-A05 |
14.0 |
15.0 |
11.5 |
| 6 |
ERS-A06 |
16.5 |
17.5 |
14.0 |
| 7 |
ERS-A07 |
19.0 |
20.0 |
16.5 |
| 8 |
ERS-B08 |
21.5 |
22.5 |
19.0 |
| 9 |
ERS-B09 |
24.0 |
25.0 |
21.5 |
| 10 |
ERS-B10 |
26.5 |
27.5 |
24.0 |
22.0 |
| 11 |
ERS-B11 |
29.0 |
30.0 |
26.5 |
22.5 |
| 12 |
ERS-B12 |
31.5 |
32.5 |
29.0 |
25.0 |
|
