0.197" (5.0mm) Pitch Disconnectable Connectors With Anti-Misinertion Consturction

SPECIFICATIONS:
  • Poles: 1-6
  • Voltage rating: AC 250V DC
  • Current ration: AC, DC, 5A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

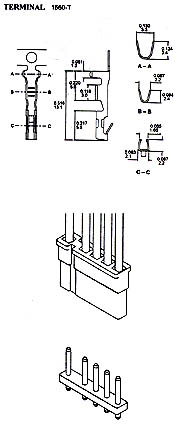

 TERMINAL:
  • Part No.:1560-T
  • Applicable wires: AWG#18-22
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty: 10,000 pcs/roll
  • Dimension
 HOUSING:
  • Part No.:1560-H
  • Poles: 1-6
  • Material: Nylon 66, UL94V-0
  • Dimension
WAFER:
  • Part No.:1560-WS(180o)
    1560-WR(90    o)
  • Poles: 1-6
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon 66, UL94V-0
    or PBT UL94V-0
  • Q'ty: 1000 pcs/roll
  • Dimension

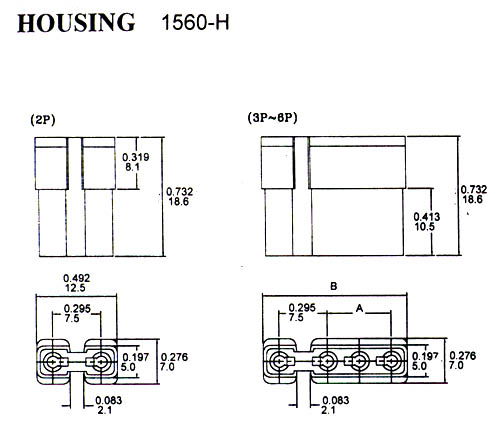

HOUSING:
Poles Part No.

Dimensions in. (mm)

 Material
A B
1 1560-H-1

Nylon 66
UL94V-0

　
2 1560-H-2   0.492 (12.5)
3 1560-H-3 0.197 (5.0) 0.689 (17.5)
4 1560-H-4 0.394 (10.5) 0.890 (22.6)
5 1560-H-5 0.591 (15.0) 1.090 (27.7)
6 1560-H-6 0.787 (20.0) 1.291 (32.8)

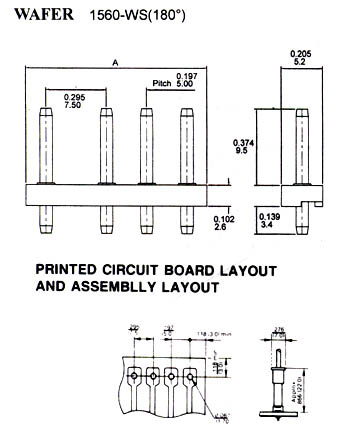

WAFER:
Poles Part No.

Dimensions in. (mm)

 Material
A
1 1560-WS-1    Post: Brass
Tin/Plated
Base: Nylon 66
UL94V-0
2 1560-WS-2 0.492 (12.5)
3 1560-WS-3 0.689 (17.5)
4 1560-WS-4 0.886 (22.5)
5 1560-WS-5 1.083 (27.5)
6 1560-WS-6 1.280 (32.5)
