0.156" (3.96mm) Pitch

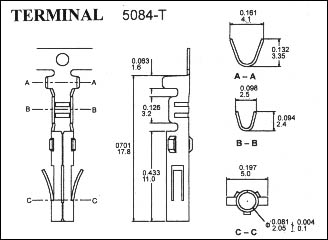

TERMINAL:
  • Part No.: 5084-T
  • Applicable wires: AWG#16-20
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.3mm
  • Q'ty: 7000 pcs/roll

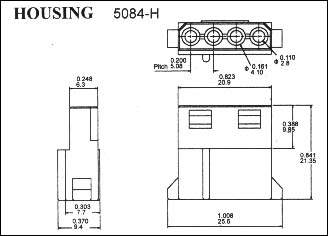

HOUSING:
  • Part No.: 5084-H
  • 4 Circuits
  • Accepts antilever crimp terminal
  • Housing Nylon 66, UL94V-2
  • Mates with 0.084" (2.13mm) crimp terminal housing
  • Terminal retantion to houing-81bs (3.63Kg) min.
  • Voltage rating: AC, DC, 250V
  • Current ration: AC, DC, 7A
  • Withstand voltage: 1500V AC/min
  • Insulation resistance: 1000M min
  • Temperature range:  -25oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M
    max.
    After environmental

    Testing/ 20M max.
  • Applicable wires: AWG#18-22

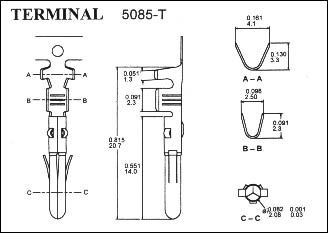

TERMINAL:
  • Part No.: 5085-T
  • Applicable wires: AWG#16-20
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty: 7000 pcs/roll

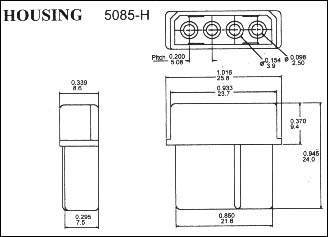

HOUSING:
  • Part No.: 5085-H
  • 4 Circuits
  • Accepts antilever crimp terminal
  • Housing Nylon 66, UL94V-2
  • Mates with 0.084" (2.13mm) crimp terminal housing
  • Terminal retantion to houing-81bs (3.63Kg) min.
  • Voltage rating: AC, DC, 250V
  • Current ration: AC, DC, 7A
  • Withstand voltage: 1500V AC/min
  • Insulation resistance: 1000M min
  • Temperature range: -25oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M
    max.
    After environmental

    Testing/ 20M max.
  • Applicable wires: AWG#18-22
