0.200" (5.08mm) 4P Power Supplier Header

SPECIFICATION:
  • Part No.: 5083-WH
  • UL94V-2, Nylon 66
  • Phosphor Bronze with Tin/Plated in contact Terminal
  • Current 8A for 18 AWG, 7A for 20 AWG, and 6A for 22 AWG
  • Recommendation wires of 18, 20 and 22 AWG with Max. Insulation diameter 2.41mm (0.095")



SPECIFICATION:

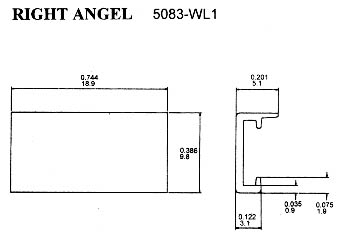

  • Part No.: 5083-WL1
  • UL94V-2, Nylon 66
  • Color black or nature as required
  • Insulates termination are of IDT socket housing and Acts as strain relief for wires



SPECIFICATION:

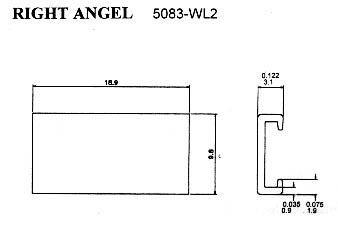

  • Part No.: 5083-WL2
  • UL94V-2, Nylon 66
  • Color black or nature as required
  • Insulates termination are of IDT socket housing and Acts as strain relief for wires
