0.156" (3.96mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles:2-14
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 7A
  • Withstand voltage: AC 1000V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

　

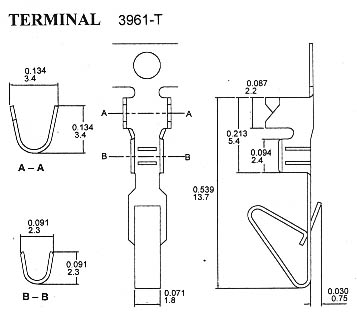

TERMINAL:
  • Part No.: 3961-T
  • Applicable wires: AWG#22-30
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty: 6000, 7000 pcs/roll

　

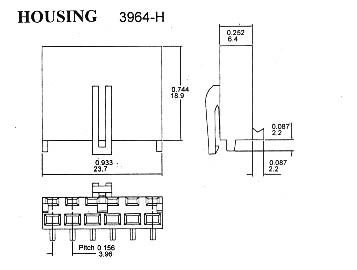

HOUSING:
  • Part No.:3964-H
  • Poles: 6
  • Material: Nylon 66,  UL94V-0 or V-2
  • Q'ty: 500, 1000 pcs/roll

　

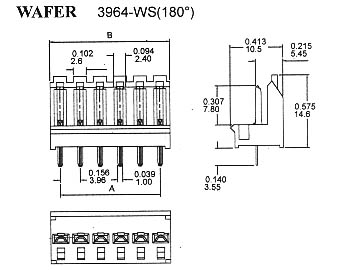

WAFER:
  • Part No.: 3964-WS(180o)
  • Poles: 6 and 12
  • Material:
    Post: Brass, Tin / Plated
    Base: Nylon 66,  UL94V-0
  • Q'ty: 500, 1000 pcs/roll

　

Poles Part No.

Dimensions In. (mm)
A B
6 3964-WS-6 0.780(18.90) 0.935(23.76)
12 3964-WS-12 1.715(43.56) 1.871(47.52)
