0.100" (2.54mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles:2-12
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 3A
  • Withstand voltage: AC 1000V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

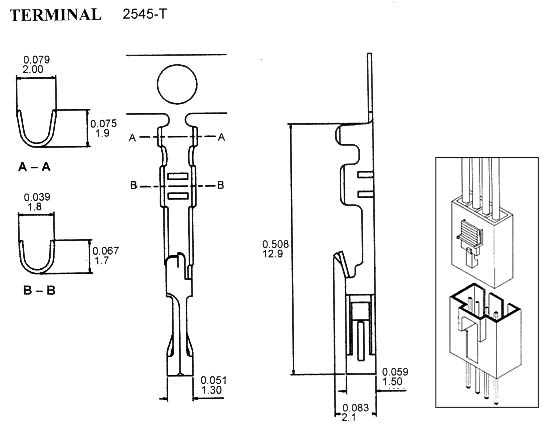

 TERMINAL:
  • Part No.: 2545-T
  • Applicable wires: AWG#22-28
  • Finish: Gold Flash Plated/Nickle Plated
  • Material: Brass
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

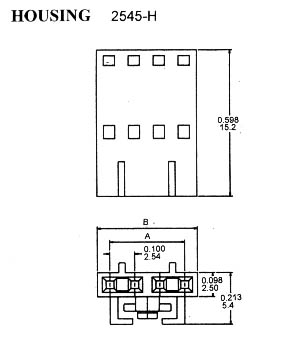

HOUSING:
  • Part No.:2545-H
  • Poles: 2-12
  • Material: PBT UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

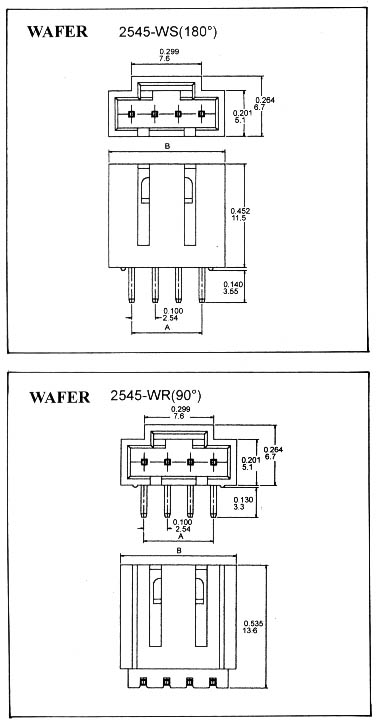

WAFER:
  • Part No.:
    2545-WS(180    o),2545-WR(90o)
  • Poles: 2-12
  • Material:
    Post: Brass, Gold Plated / Tin Plated
    Base: PBT UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 2545-H-2 0.10(2.54) 0.20(5.05) Nylon 66

UL94V-0
3 2545-H-3 0.20(5.08) 0.30(7.59)
4 2545-H-4 0.30(7.62) 0.40(10.20)
5 2545-H-5 0.40(10.16) 0.50(12.67)
6 2545-H-6 0.50(12.70) 0.60(15.21)
7 2545-H-7 0.60(15.24) 0.70(17.75)
8 2545-H-8 0.70(17.78) 0.80(20.29)
9 2545-H-9 0.80(20.32) 0.90(22.83)
10 2545-H-10 0.90(22.86) 1.00(25.37)
11 2545-H-11 1.00(25.40) 1.10(27.91)
12 2545-H-12 1.10(27.94) 1.20(30.45)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 2545-WS-2 2545-WR-2 0.10(2.54) 0.30(7.62)
3 2545-WS-3 2545-WR-3 0.20(5.08) 0.40(10.16)
4 2545-WS-4 2545-WR-4 0.30(7.62) 0.50(12.70)
5 2545-WS-5 2545-WR-5 0.40(10.16) 0.60(15.24)
6 2545-WS-6 2545-WR-6 0.50(12.70) 0.70(17.78)
7 2545-WS-7 2545-WR-7 0.60(15.24) 0.80(20.32)
8 2545-WS-8 2545-WR-8 0.70(17.78) 0.90(22.86)
9 2545-WS-9 2545-WR-9 0.80(20.32) 1.00(25.40)
10 2545-WS-10 2545-WR-10 0.90(22.86) 1.10(27.94)
11 2545-WS-11 2545-WR-11 1.00(25.40) 1.20(30.84)
12 2545-WS-12 2545-WR-12 1.10(27.94) 1.30(33.02)
