0.079" (2.0mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles: 2-15
    Voltage rating: AC 250V DC
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

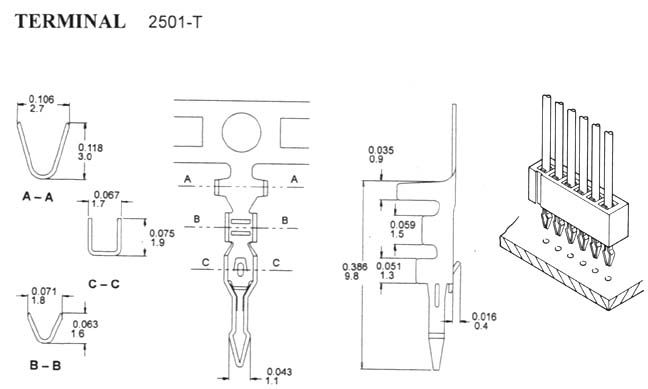

 TERMINAL:
  • Part No.: 2501-T
  • Applicable wires: AWG#24-30
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

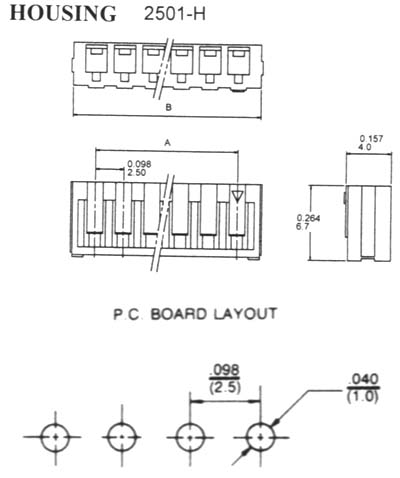

HOUSING:
  • Part No.:2501-H
  • Poles:2-20
  • Material: Nylon 66, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

　
HOUSING:
Poles Part No.

Dimensions in. (mm)

Material
A B
2 2501-H-2 0.098(2.5) 0.256(6.5) Nylon 66
UL94V-0
3 2501-H-3 0.197(5.0) 0.354(9.0)
4 2501-H-4 0.295(7.5) 0.453(11.5)
5 2501-H-5 0.394(10.0) 0.551(14.0)
6 2501-H-6 0.492(12.5) 0.650(16.5)
7 2501-H-7 0.591(15.0) 0.748(19.0)
8 2501-H-8 0.689(17.5) 0.846(21.5)
9 2501-H-9 0.787(20.0) 0.945(24.0)
10 2501-H-10 0.886(22.5) 1.043(26.5)
11 2501-H-11 0.984(25.0) 1.142(29.0)
12 2501-H-12 1.083(27.5) 1.240(31.5)
13 2501-H-13 0.181(30.0) 1.339(34.0)
14 2501-H-14 1.280(32.5) 1.437(36.5)
15 2501-H-15 1.378(35.0) 1.535(39.0)
