0.093" (2.36mm) Disconnectable Connectors

SPECIFICATIONS:
  • Poles: 1-6
    Voltage rating: AC 250V DC
  • Current ration: AC, DC, 5A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

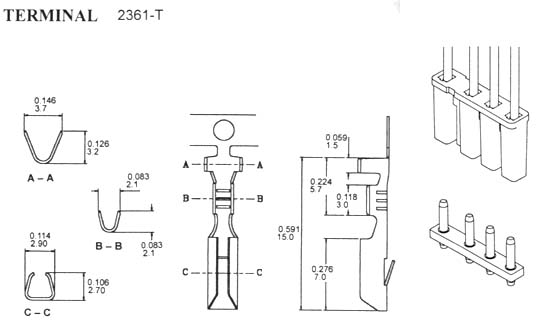

 TERMINAL:
  • Part No.: 2361-T
  • Applicable wires: AWG#18-26
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

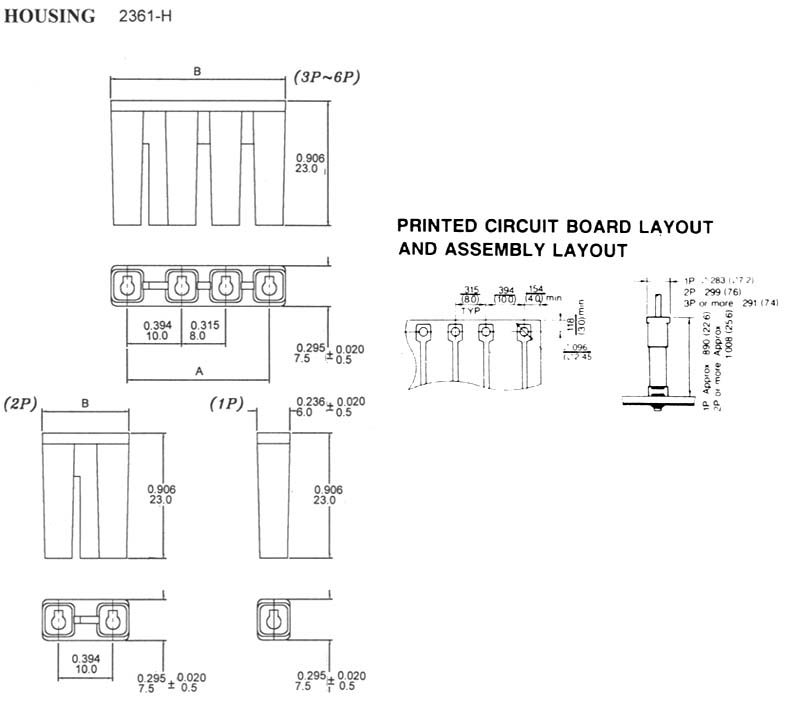

HOUSING:
  • Part No.:2361-H
  • Poles:1-6
  • Material: Noryl 66, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

　

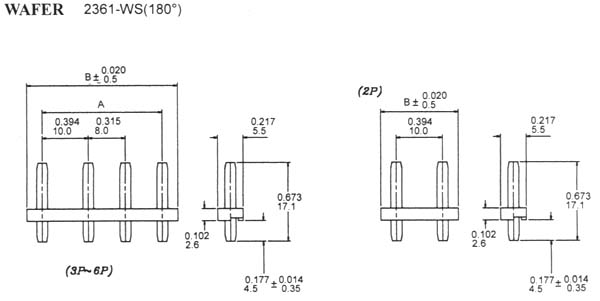

WAFER:
  • Part No.:2361-WS(180o)
  • Poles:1-6
  • Material:
    Post:Phos. Brass, Tin/Plated
    Base: UL94V-0  PBT
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

　

WAFER:
Poles Part No.

Dimensions in. (mm)

Material
A B
1 2361-H-1 　 0.236(6.0) Noryl
UL94V-0

　

2 2361-H-2 0.394(10.0) 0.630(16.0)
3 2361-H-3 0.709(18.0) 0.945(24.0)
4 2361-H-4 1.024(26.0) 1.260(32.0)
5 2361-H-5 1.393(34.0) 1.575(40.0)
6 2361-H-6 1.654(42.0) 1.890(48.0)
WAFER:
Poles Part No.

Dimensions in. (mm)

Material
A B
1 2361-WS-1 　 　 Post: Brass Tin/Plated
Base:PBT
UL94V-0

　

2 2361-WS-2 0.394(10.0) 0.657(16.7)
3 2361-WS-3 0.709(18.0) 0.972(24.7)
4 2361-WS-4 1.024(26.0) 1.287(32.7)
5 2361-WS-5 1.393(34.0) 1.602(40.7)
6 2361-WS-6 1.654(42.0) 1.917(48.8)
