0.079" (2.0mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles: 2-15
    Voltage rating: AC 250V DC
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

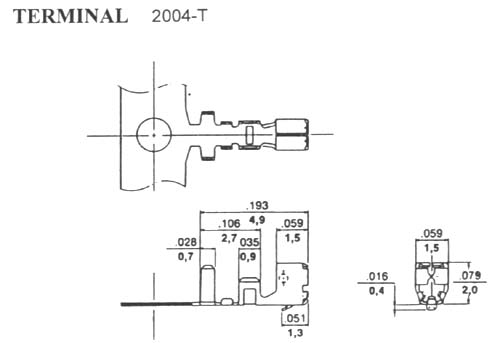

 TERMINAL:
  • Part No.:2004-T
  • Applicable wires: AWG#24-30
  • Finish: Tin/Plated
  • Material: Phos. Bronze(Brass)
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty: 10,000 pcs/roll
  • Dimension
 HOUSING:
  • Part No.:2004-H
  • Poles:2-15
  • Material: Nylon 66, UL94V-0 Natural
  • Q'ty: 500,1000 pcs/roll
  • Dimension

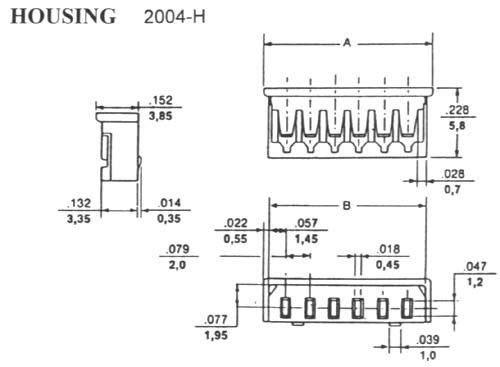

HOUSING:
Poles Part No.

Dimensions in. (mm)

Material
A B

2

2004-H-2

 0.236(6.0) 0.201(5.1)

Post:Brass
Tin/Plated

Base:Nylon 66
UL94V-0 Natural

　

3

 2004-H-3 0.315(8.0) 0.280(7.1)

4

 2004-H-4 0.394(10.0) 0.358(9.1)

5

 2004-H-5 0.472(12.0) 0.437(11.1)

6

 2004-H-6 0.551(14.0) 0.516(13.1)

7

 2004-H-7 0.630(16.0) 0.594(15.1)

8

 2004-H-8 0.709(18.0) 0.673(17.1)

9

 2004-H-9 0.787(20.0) 0.752(19.1)

10

 2004-H-10 0.866(22.0) 0.831(21.1)

11

 2004-H-11 0.945(24.0) 0.909(23.1)

12

 2004-H-12 1.024(26.0) 0.988(25.1)

13

 2004-H-13 1.102(28.0) 1.067(27.1)

14

 2004-H-14 1.181(30.0) 1.146(29.1)

15

 2004-H-15 1.260(32.0) 1.224(31.1)
