SPECIFICATIONS:
- Poles: 2-20
Voltage rating: AC 250V DC
- Current ration: AC, DC, 2A
- Withstand voltage: AC 800V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25~+85 oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

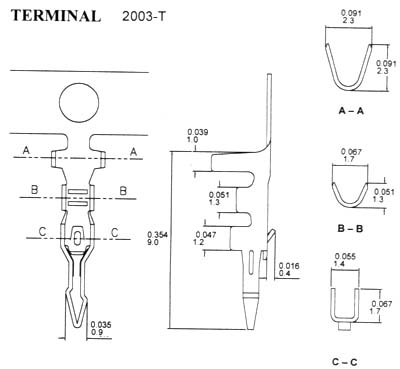

TERMINAL:
- Part No.:2003-T
- Applicable wires: AWG#24-30
- Finish: Tin/Plated
- Material: Phos. Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|

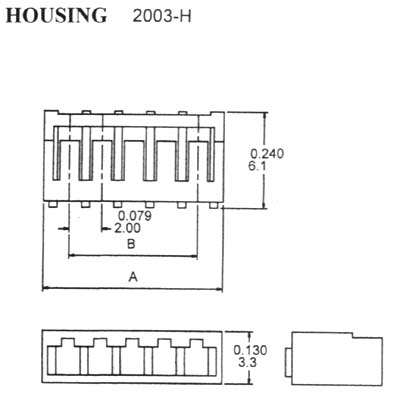

HOUSING:
- Part No.:2003-H
- Poles:2-20
- Material: Nylon 66, UL94V-0 Natural
- Q'ty: 1000 pcs/roll
- Dimension
|
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
2 |
2003-H-2 |
0.205(5.2) |
0.079(2.0) |
Nylon 66
UL94V-0
|
3 |
2003-H-3 |
0.283(7.2) |
0.157(4.0) |
4 |
2003-H-4 |
0.362(9.2) |
0.236(6.0) |
5 |
2003-H-5 |
0.441(11.2) |
0.315(8.0) |
6 |
2003-H-6 |
0.520(13.2) |
0.394(10.0) |
7 |
2003-H-7 |
0.598(15.2) |
0.472(12.0) |
8 |
2003-H-8 |
0.677(17.2) |
0.551(14.0) |
9 |
2003-H-9 |
0.765(19.2) |
0.630(16.0) |
10 |
2003-H-10 |
0.835(21.2) |
0.709(18.0) |
11 |
2003-H-11 |
0.913(23.2) |
0.787(20.0) |
12 |
2003-H-12 |
0.922(25.2) |
0.866(22.0) |
13 |
2003-H-13 |
1.071(27.2) |
0.945(24.0) |
14 |
2003-H-14 |
1.150(29.2) |
1.024(26.0) |
15 |
2003-H-15 |
1.228(31.2) |
1.102(28.0) |
| 16 |
2003-H-16 |
1.307(33.2) |
1.181(30.0) |
| 17 |
2003-H-17 |
1.386(35.2) |
1.260(32.0) |
| 18 |
2003-H-18 |
1.465(37.2) |
1.399(34.0) |
| 19 |
2003-H-19 |
1.543(39.2) |
1.417(36.0) |
| 20 |
2003-H-20 |
1.622(41.2) |
1.496(38.0) |
|
TERMINAL:
- Part No.:2003-RT
- Applicable wires: AWG#24-30
- Finish: Tin/Plated
- Material: Phos. Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|

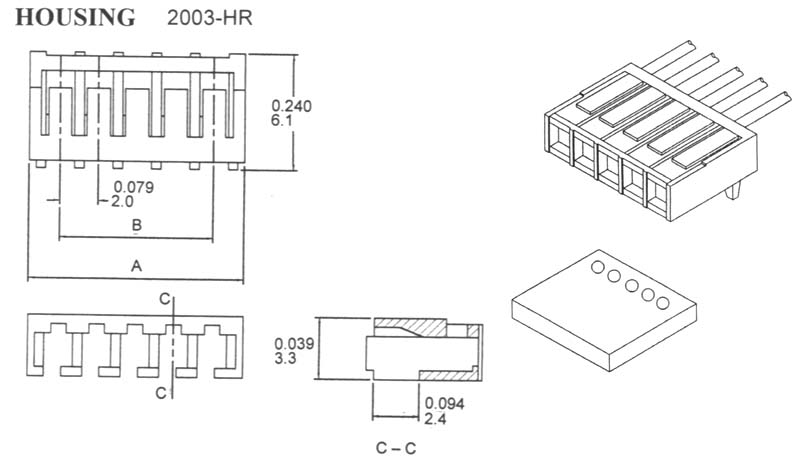

HOUSING:
- Part No.:2003-HR
- Poles:2-20
- Material: Nylon 66, UL94V-0 Natural
- Q'ty: 1000 pcs/roll
- Dimension
|
|
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
2 |
2003-HR-2 |
0.205(5.2) |
0.079(2.0) |
Nylon 66
UL94V-0
|
3 |
2003-HR-3 |
0.283(7.2) |
0.157(4.0) |
4 |
2003-HR-4 |
0.362(9.2) |
0.236(6.0) |
5 |
2003-HR-5 |
0.441(11.2) |
0.315(8.0) |
6 |
2003-HR-6 |
0.520(13.2) |
0.394(10.0) |
7 |
2003-HR-7 |
0.598(15.2) |
0.472(12.0) |
8 |
2003-HR-8 |
0.677(17.2) |
0.551(14.0) |
9 |
2003-HR-9 |
0.765(19.2) |
0.630(16.0) |
10 |
2003-HR-10 |
0.835(21.2) |
0.709(18.0) |
11 |
2003-HR-11 |
0.913(23.2) |
0.787(20.0) |
12 |
2003-HR-12 |
0.922(25.2) |
0.866(22.0) |
13 |
2003-HR-13 |
1.071(27.2) |
0.945(24.0) |
14 |
2003-HR-14 |
1.150(29.2) |
1.024(26.0) |
15 |
2003-HR-15 |
1.228(31.2) |
1.102(28.0) |
| 16 |
2003-HR-16 |
1.307(33.2) |
1.181(30.0) |
| 17 |
2003-HR-17 |
1.386(35.2) |
1.260(32.0) |
| 18 |
2003-HR-18 |
1.465(37.2) |
1.399(34.0) |
| 19 |
2003-HR-19 |
1.543(39.2) |
1.417(36.0) |
| 20 |
2003-HR-20 |
1.622(41.2) |
1.496(38.0) |
|

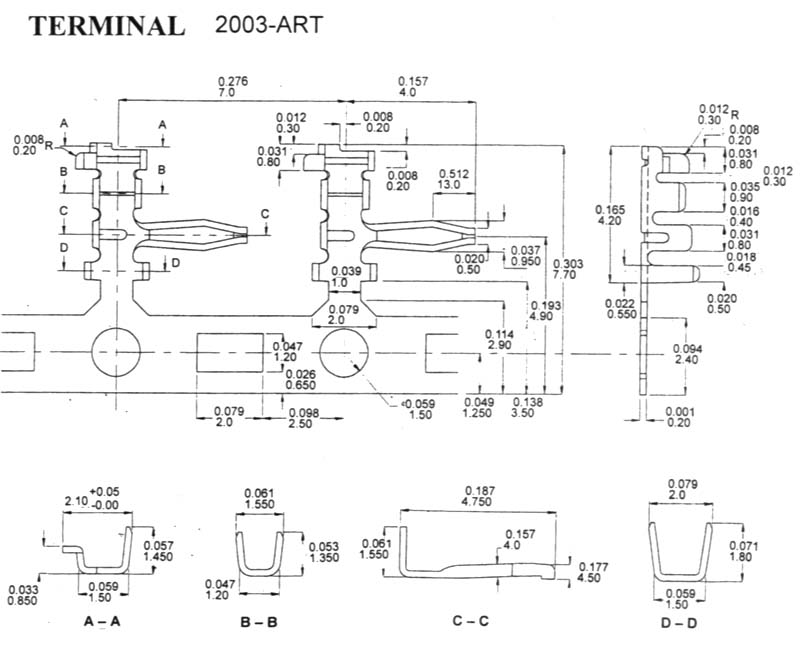

TERMINAL:
- Part No.:2003-ART
- Applicable wires: AWG#
- Finish:
- Material: Phos. Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|

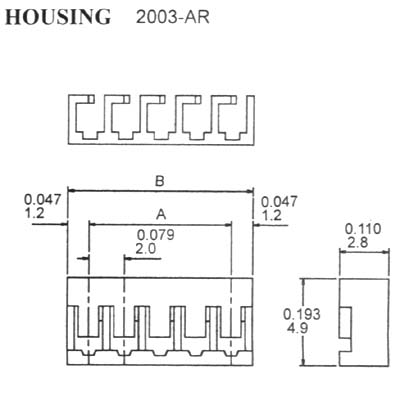

HOUSING:
- Part No.:2003-AR
- Poles:2-20
- Material: Nylon 66, UL94V-0 Natural
- Q'ty: 1000 pcs/roll
- Dimension
|
|
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
2 |
2003-HR-2 |
0.079(2.0) |
0.173(4.4) |
Nylon 66
UL94V-0
|
3 |
2003-HR-3 |
0.157(4.0) |
0.252(6.4) |
4 |
2003-HR-4 |
0.236(6.0) |
0.331(8.4) |
5 |
2003-HR-5 |
0.315(8.0) |
0.409(10.4) |
6 |
2003-HR-6 |
0.394(10.0) |
0.488(12.4) |
7 |
2003-HR-7 |
0.472(12.0) |
0.567(14.4) |
8 |
2003-HR-8 |
0.551(14.0) |
0.646(16.4) |
9 |
2003-HR-9 |
0.630(16.0) |
0.724(18.4) |
10 |
2003-HR-10 |
0.709(18.0) |
0.803(20.4) |
11 |
2003-HR-11 |
0.787(20.0) |
0.882(22.4) |
12 |
2003-HR-12 |
0.866(22.0) |
0.961(24.4) |
13 |
2003-HR-13 |
0.945(24.0) |
1.039(26.4) |
14 |
2003-HR-14 |
1.024(26.0) |
1.118(28.4) |
15 |
2003-HR-15 |
1.102(28.0) |
1.197(30.4) |
| 16 |
2003-HR-16 |
1.181(30.0) |
1.276(32.4) |
| 17 |
2003-HR-17 |
1.260(32.0) |
1.354(34.4) |
| 18 |
2003-HR-18 |
1.399(34.0) |
1.433(36.4) |
| 19 |
2003-HR-19 |
1.417(36.0) |
1.512(38.4) |
| 20 |
2003-HR-20 |
1.496(38.0) |
1.591(40.4) |
|
